Product Details
＋

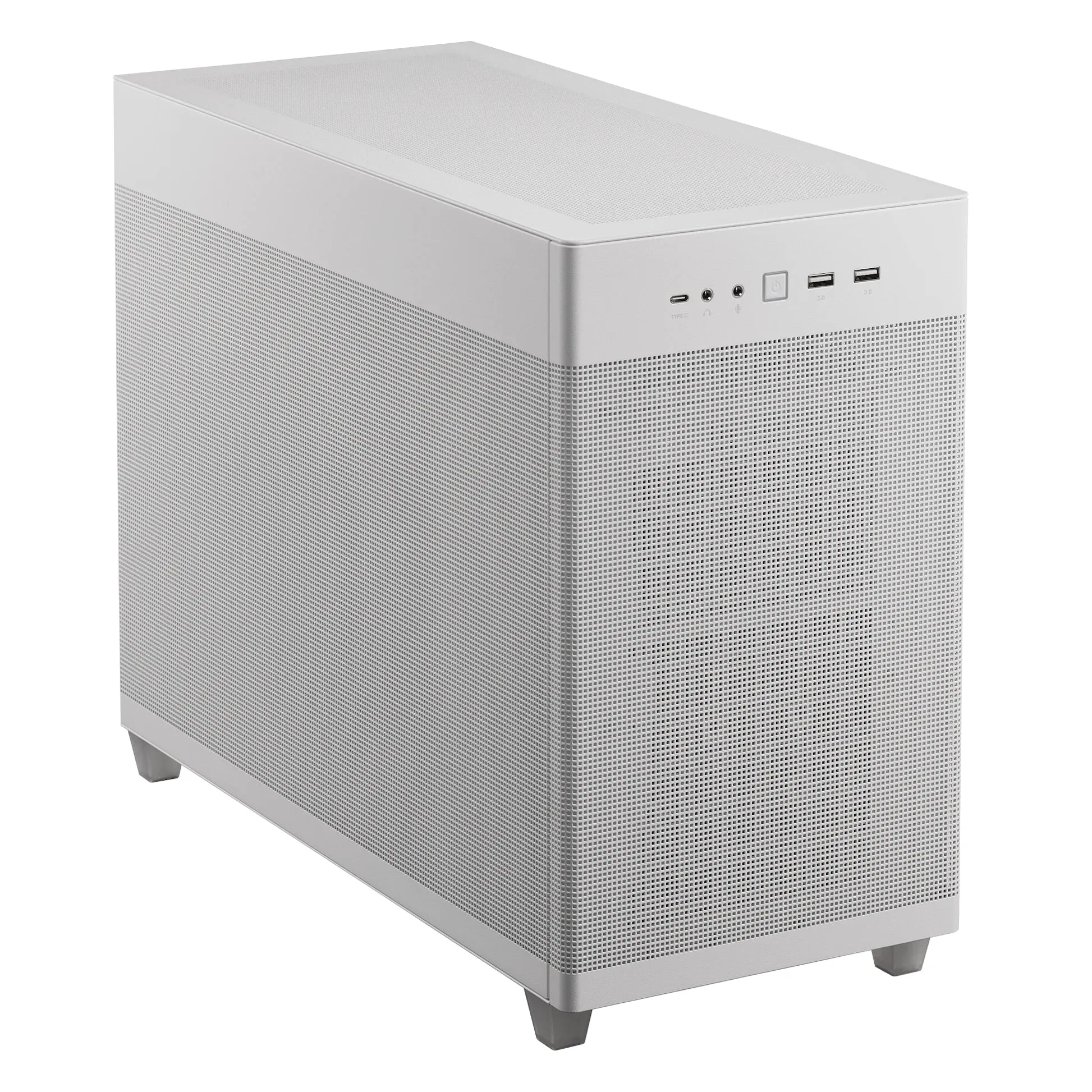

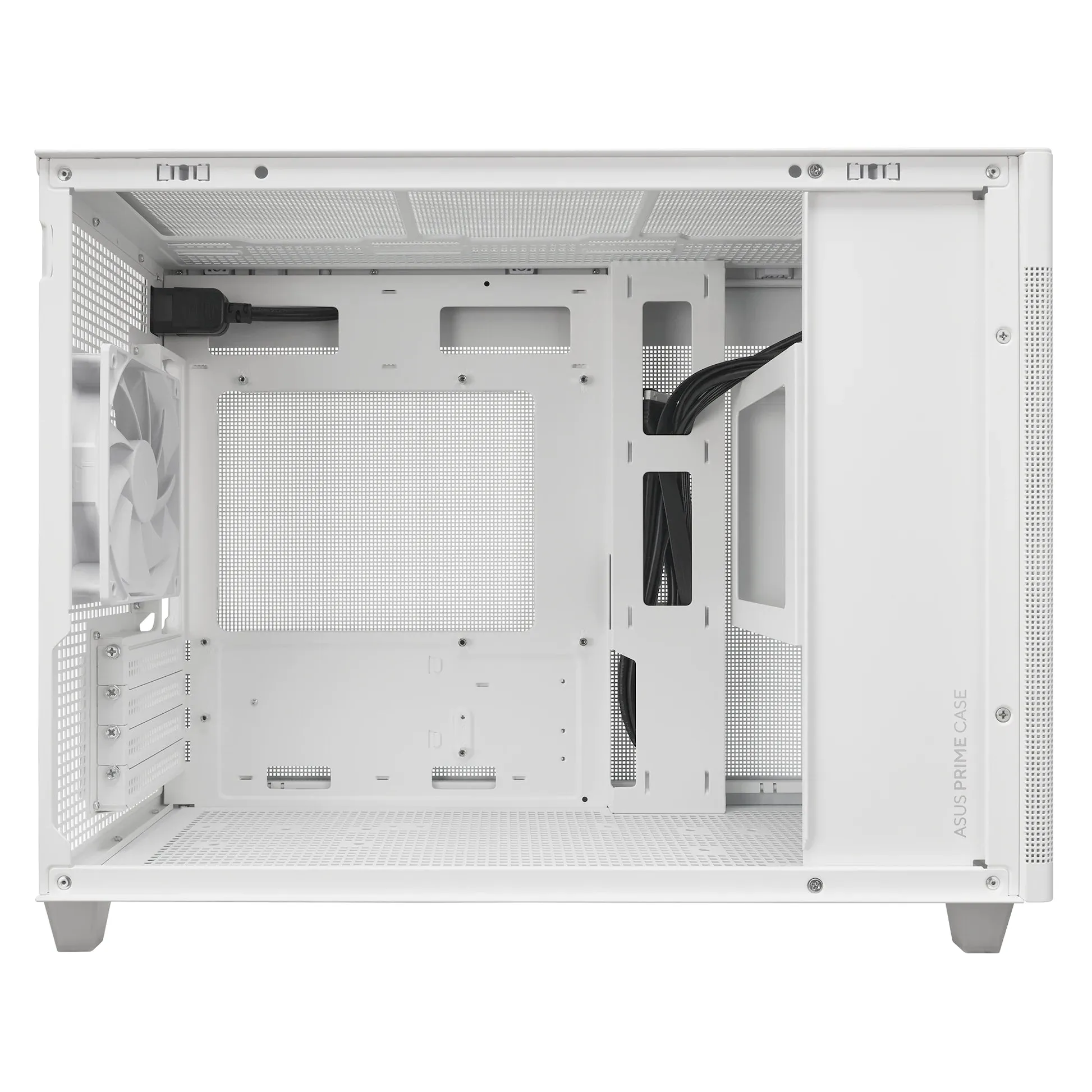

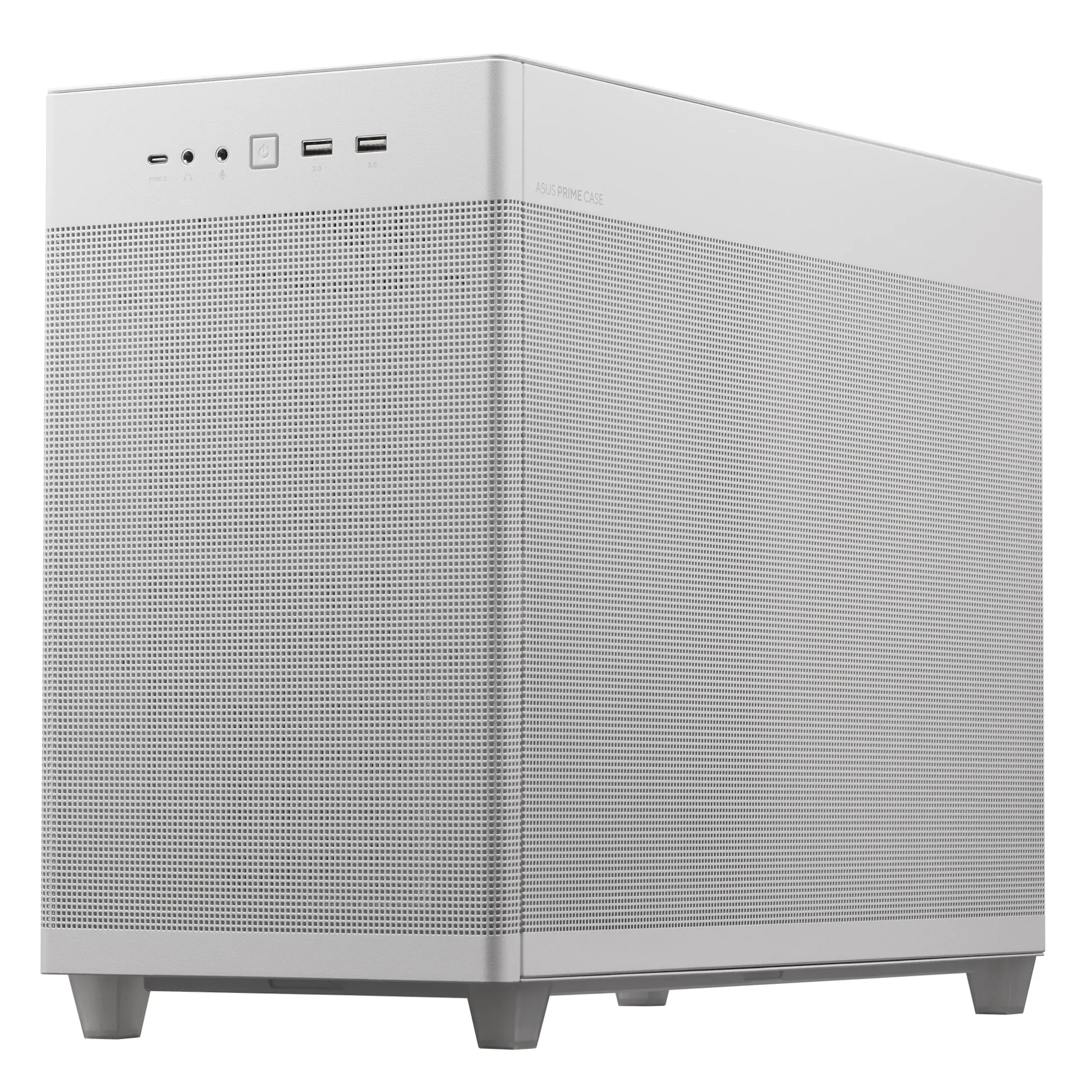

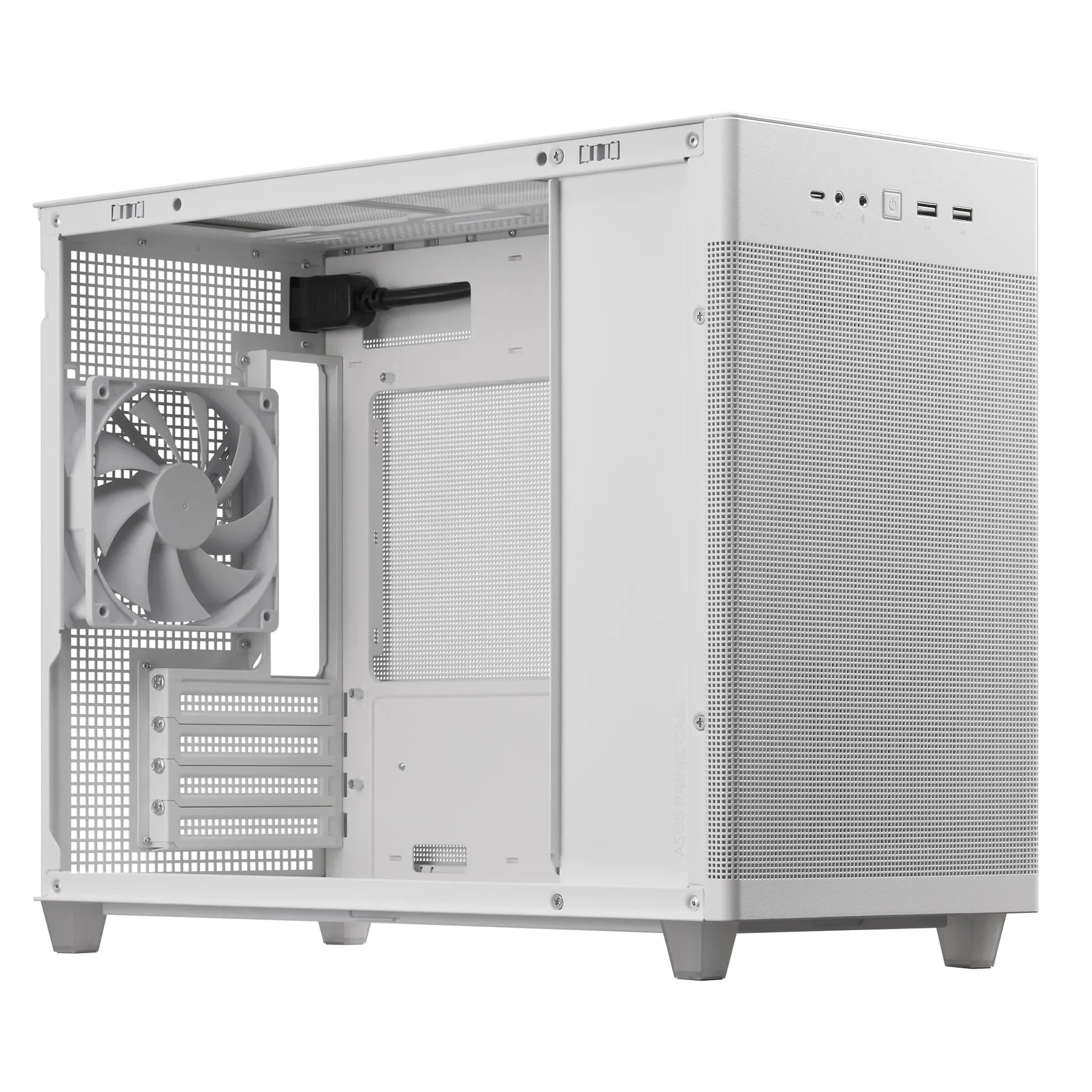

The ASUS Prime AP201 is a breakthrough in microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels with a quasi-filter mesh also provide easy access and enhanced airflow, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build.
ASUS PRIME AP201 AT A GLANCE:
- Quasi-Filter Mesh Panels
- Optimized for Cooling
- Industry-Leading Spatial Efficiency
- Tool-Free Side Panels
- Sizeable Cable-Management
- Front Panel USB Type-C® Support
ASUS PRIME AP201 SPECIFICATIONS:
| Motherboard Support | Micro-ATX Mini-ITX |
| Drive Bays | 1 x 2.5" Bay 3 x 2.5"/3.5" Combo Bay |
| Expansion Slots | 4 |
| Front I/O Port | 1 x Headphone 1 x Microphone 2 x USB 3.2 Gen1 1 x USB 3.2 Gen2 Type C |
| Radiator Support (Top) | 120 mm 140 mm 240 mm 280 mm 360 mm |
| Radiator Support (Rear) | 120 mm |
| Cooling Support (Top) | 3 x 120 mm 2 x 140 mm |
| Cooling Support (Rear) | 1 x 120 mm |
| Pre-installed Fans (Front) | None |
| Pre-installed Fans (Rear) | 1 x 120 mm |
| Maximum CPU Cooler Height | 170 mm |
| Maximum GPU Length | 338 mm |
| Maximum PSU Length | 140-180 mm |
| Removable Dust Filters | Bottom |
| Maximum Cable Management Space | 32 mm |
