Product Details
＋

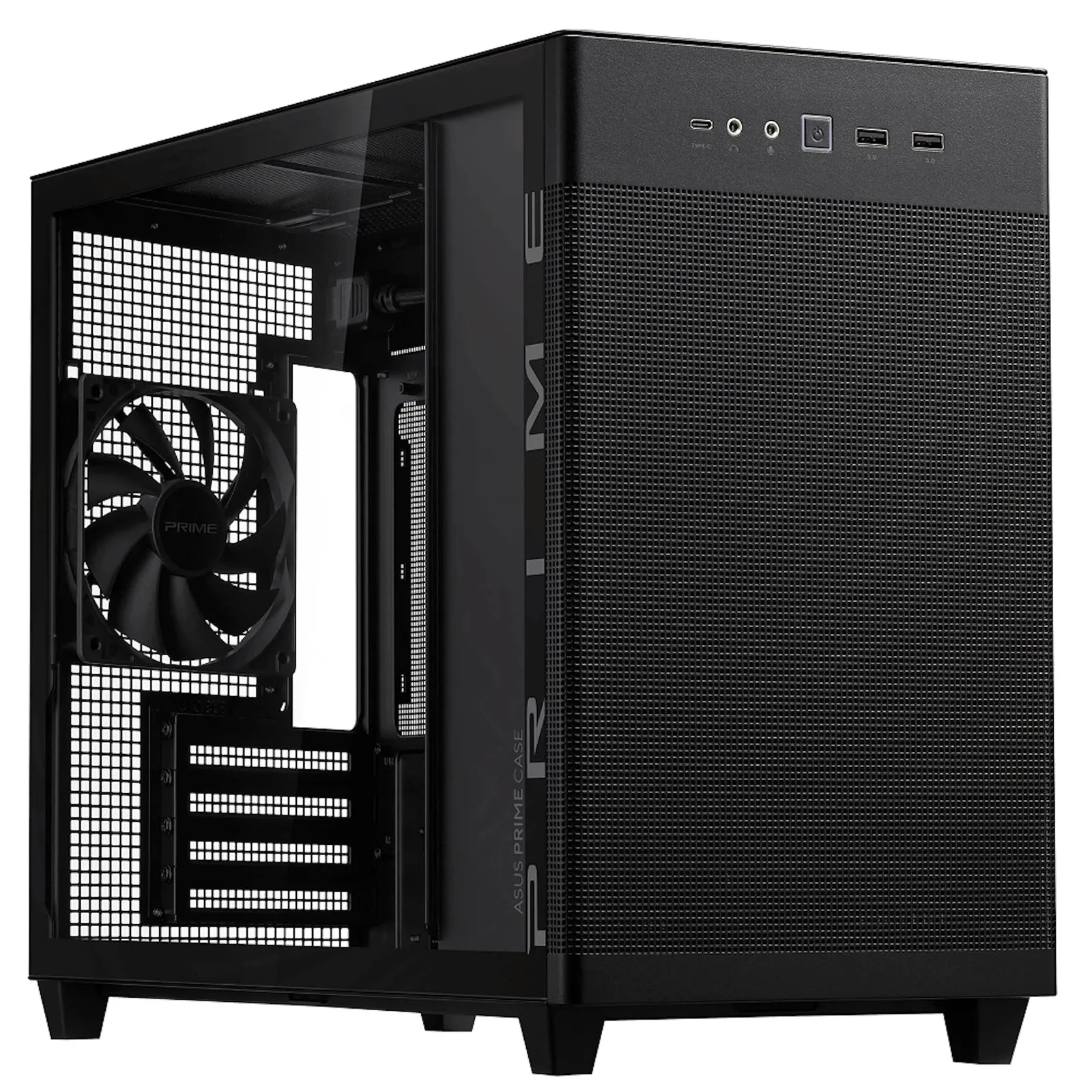

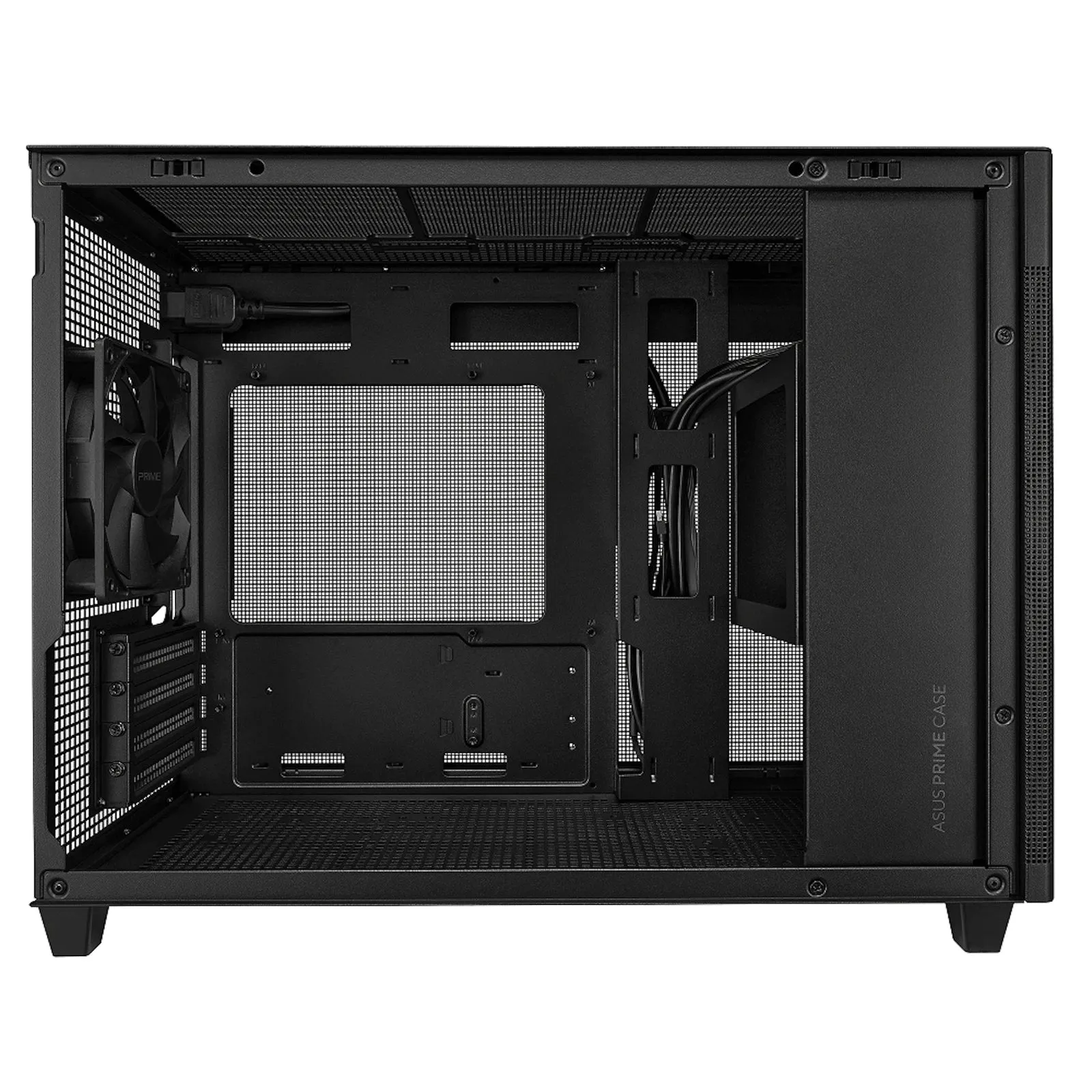

The ASUS Prime AP201 TG is a stylish MicroATX case with tool-free side panels and a quasi-filter mesh, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs and a Tempered Glass Side Panel
AP201 TG AT A GLANCE
- Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
- Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.

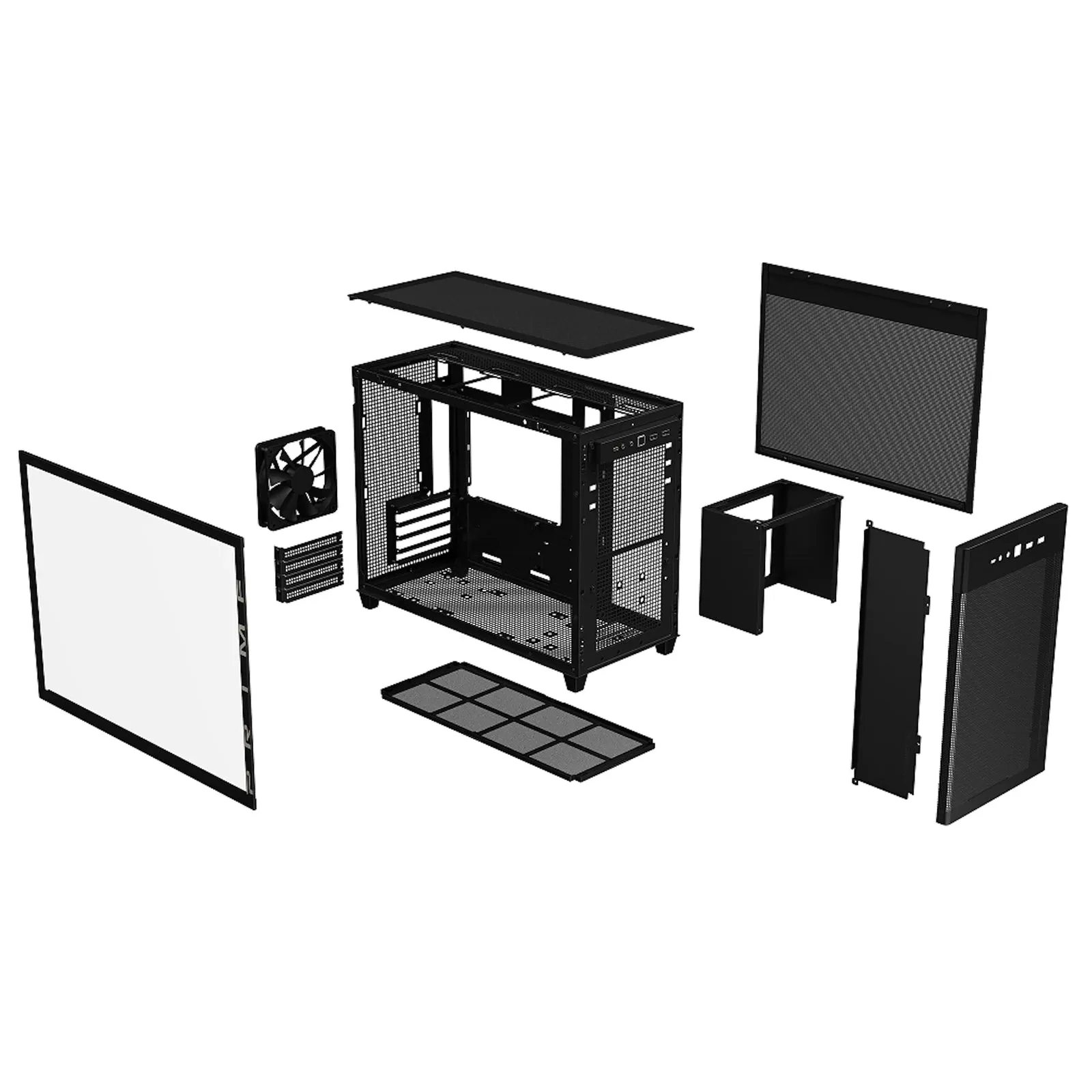

- Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.

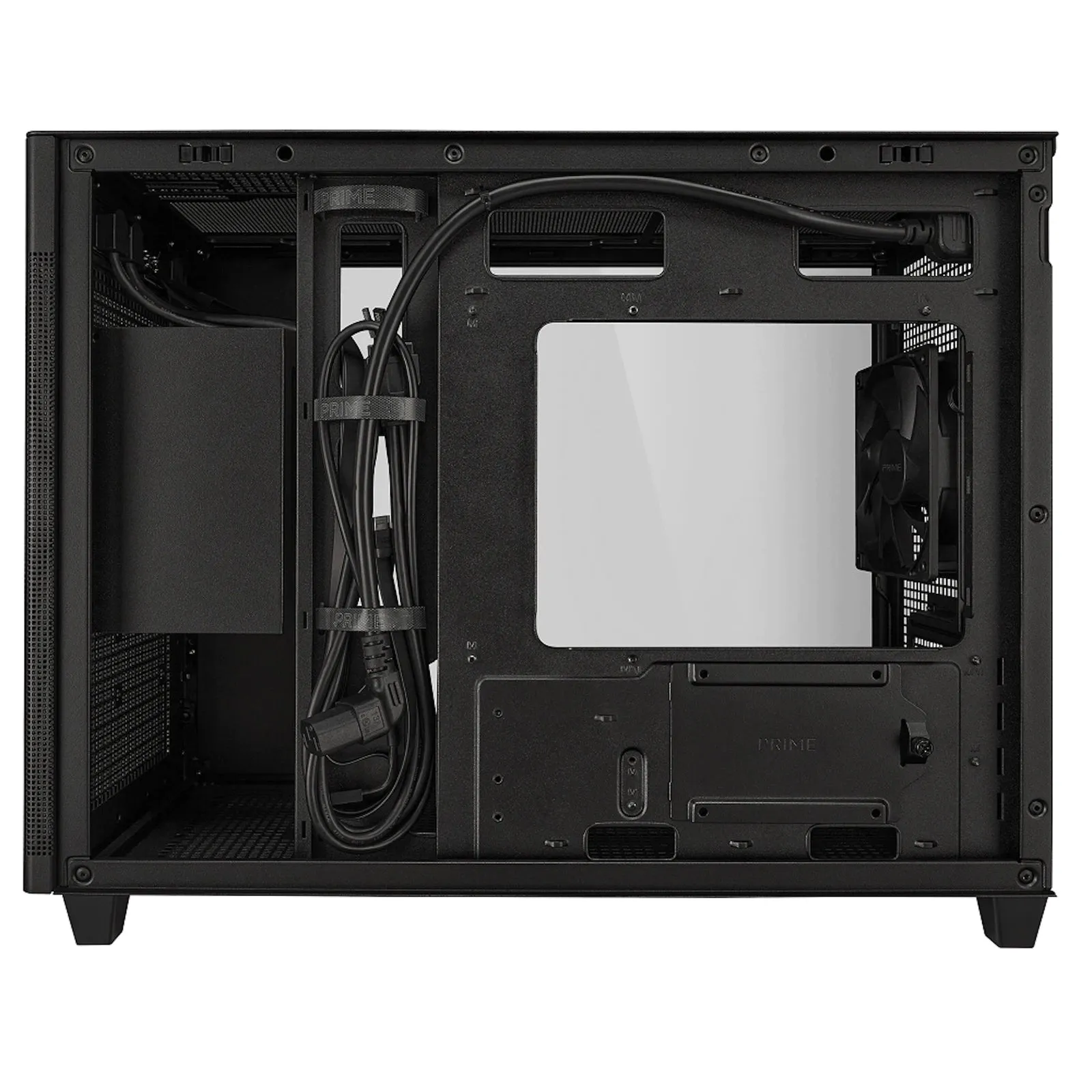

- Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.

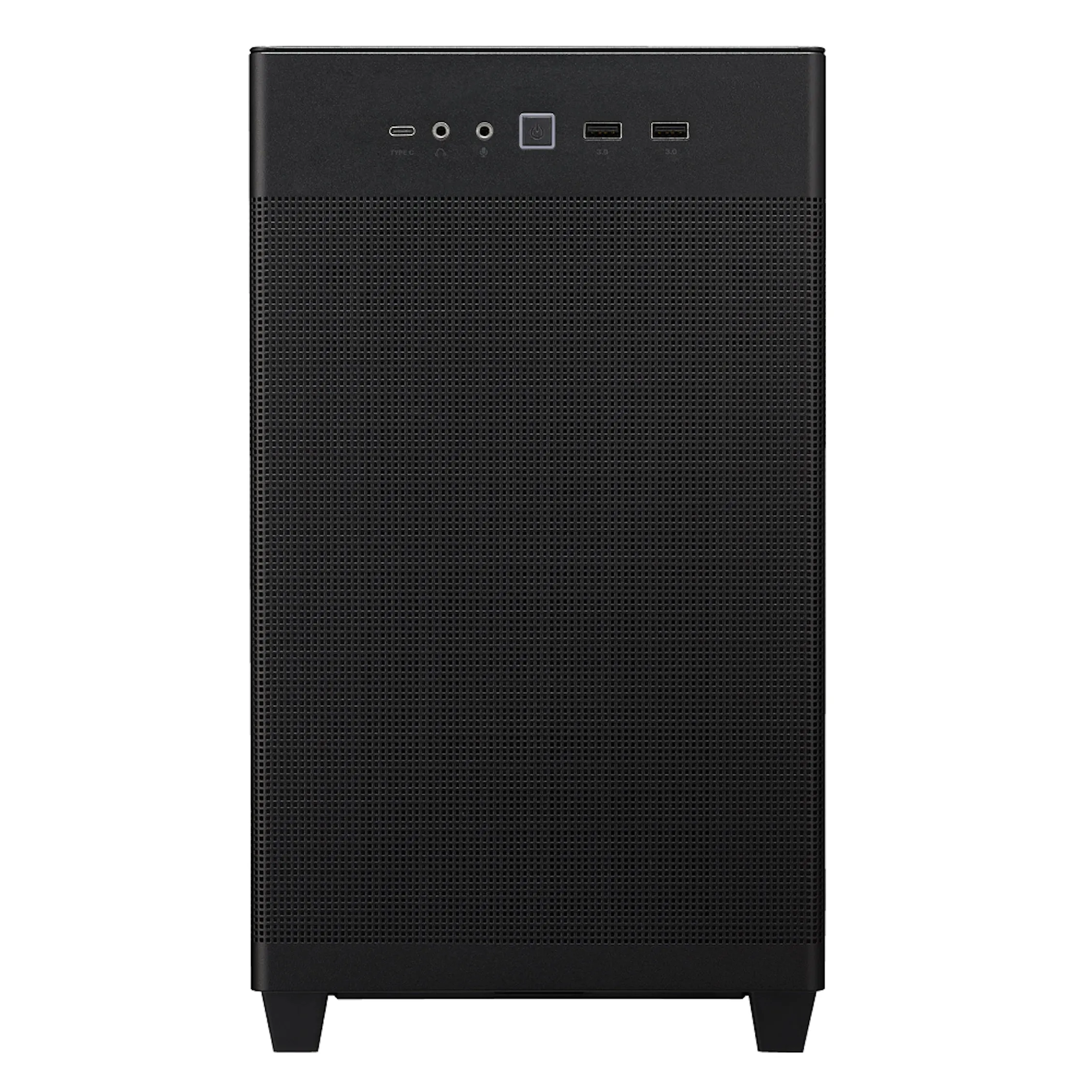

- Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
AP201 TG SPECIFICATION
| Model | ASUS Prime AP201 Tempered Glass MicroATX Case |
|---|---|
| Case Size | Small Tower |
| Motherboard Support | Micro-ATX Mini-ITX |
| Drive Bays | 1 x 2.5" Bay 3 x 2.5"/3.5" Combo Bay |
| Expansion Slots | 4 |
| Front I/O Port | 1 x Headphone 1 x Microphone 2 x USB 3.2 Gen1 1 x USB 3.2 Gen2 Type C |
| Radiator Support (Top) | 120 mm 140 mm 240 mm 280 mm 360 mm |
| Radiator Support (Rear) | 120 mm |
| Cooling Support (Top) | 3 x 120 mm 2 x 140 mm |
| Cooling Support (Rear) | 1 x 120 mm |
| Pre-installed Fans (Front) | None |
| Pre-installed Fans (Rear) | 1 x 120 mm |
| Maximum CPU Cooler Height | 170 mm |
| Maximum GPU Length | 338 mm |
| Maximum PSU Length | 140-180 mm |
| Removable Dust Filters | Bottom |
| Maximum Cable Management Space | 32 mm |
| Dimensions | 205 x 350 x 460 mm |
| Weight | 5.8 Kg |
