• Compact construction does not block memory slots
• Virtually inaudible Silent Wings 3 120mm PWM fan
• Achieves only 23.6dB(A) at maximum fan speed

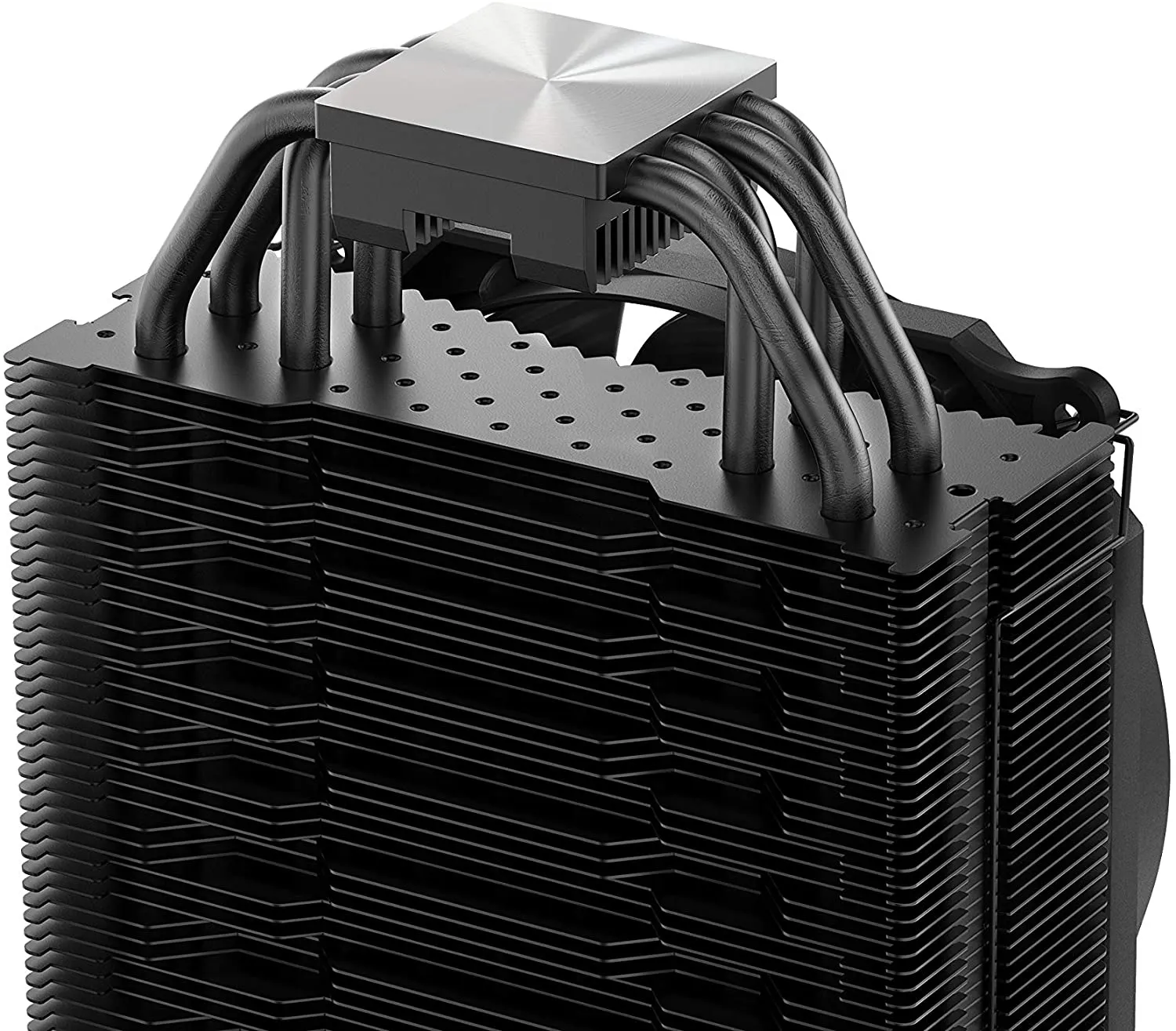

• Four high-performance copper heat pipes

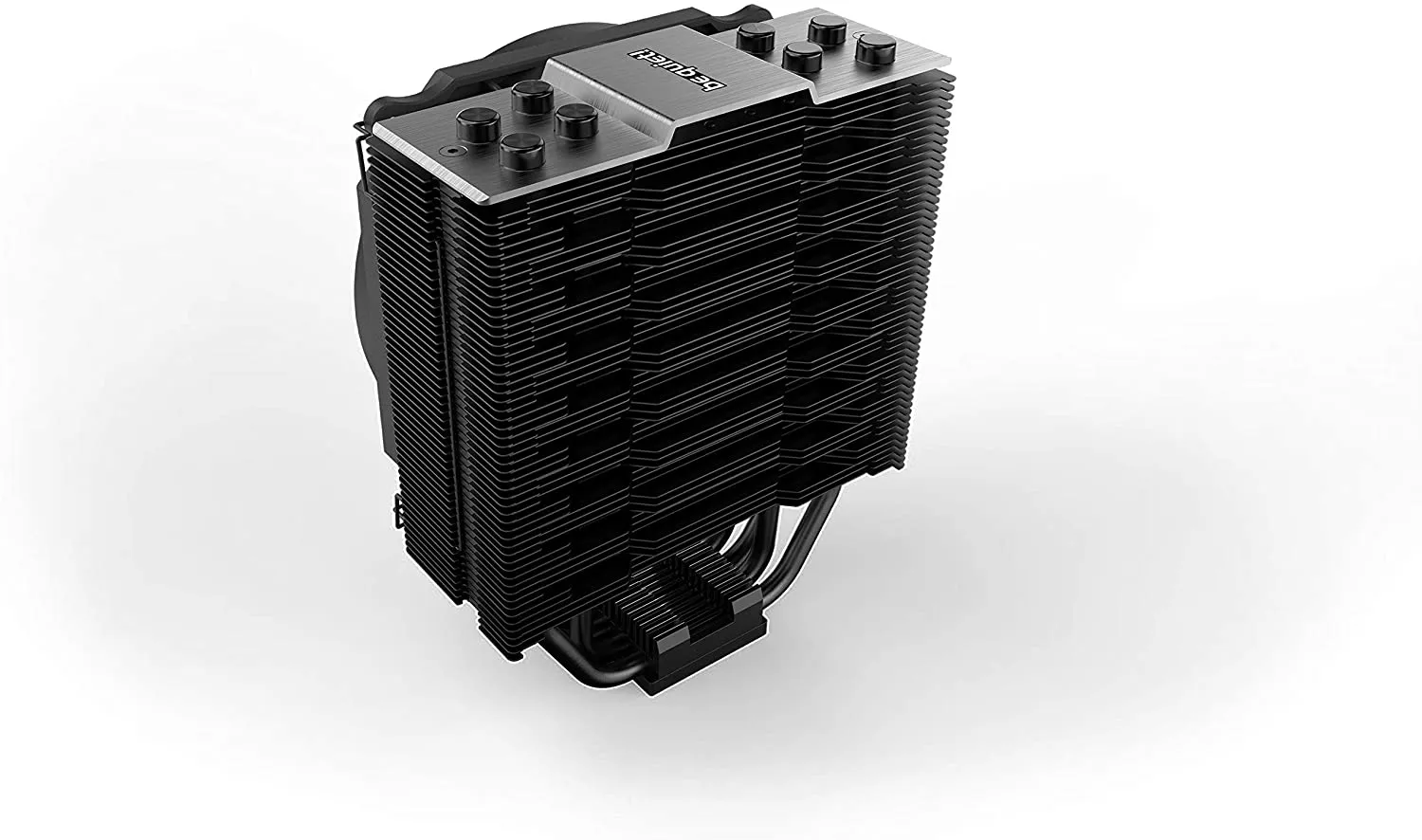

• Airflow-optimized, wave-contoured cooling fins
• Special black coating with ceramic particles enables perfect heat transfer
• Supports an additional 120mm fan; fan clips are included

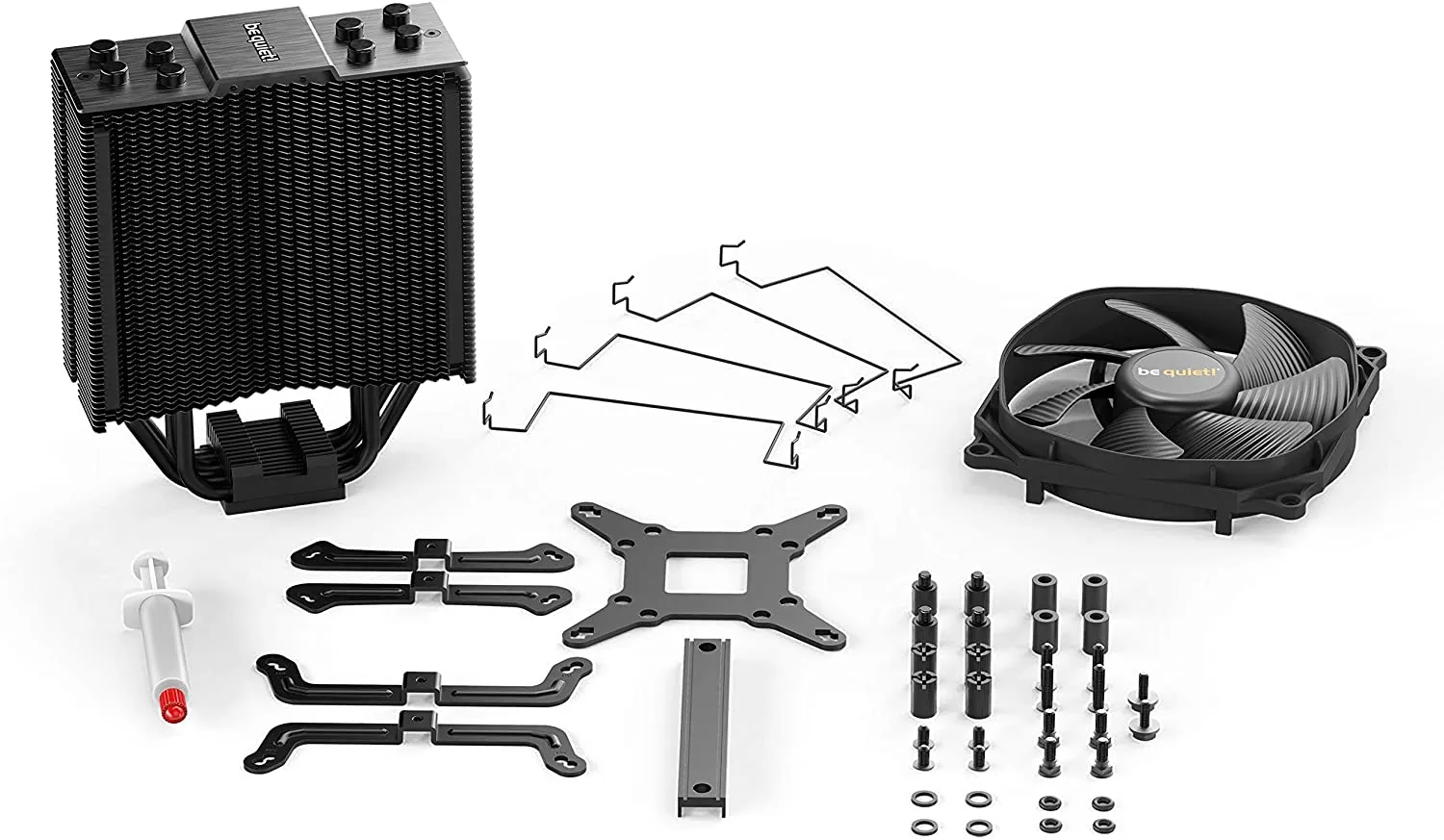

• Easily installable black installation kit can be mounted from above
• Brushed aluminum top cover with diamond cut finish

Specification

Type: Heatsink and Fan

AMD/Intel: Combo

Compatibility

Intel: LGA 1200 / 1150 / 1151 / 1155 / 1156 / 1366 / 2011(-3) Square ILM / 2066

AMD: AM2( ) / AM3( ) / AM4 / FM1 / FM2( )

TDP: 180W

Colour: Black

Material

Fin material: Aluminum
Base material: Copper
CPU contact surface: CNC machined

Weight: 0.62 kg

Fan Dimensions: 120 x 120 x 23 mm

Dimensions

Overall dimensions without mounting material:
(L x W x H) 72 x 127 x 159 mm

Fan Controller: PWM

Rotation Speed: 100% PWM /12V: 1,500 RPM

Fan Bearing: Fluid Dynamic Bearing

Noise level: 50/75/100%: 11 / 16.9 / 23.6 dB(A)

Power

Rated voltage: 12V
Input current: 0.08 A
Input power: 0.96 W

MTBF: 300,000 hours (approx.)
