Breezaire WKCE Series Cooling System Wine Fridge WKCE 2200 Overview
WKCE 2200 is a direct replacement for WKC 2200 & OEM 2200.
All are specialized designs that create a kind of carefully controlled environment demanded products that are highly sensitive to changes in temperature and humidity. They are not intended for use in standard refrigeration applications.
By the nature of their operation, thermoelectric wine cellar cooling units will maintain a stable humidity level, lower than the relative ambient humidity. In situations where the ambient humidity is high, the wine cellar cooling units will lower the humidity to desirable storage levels. In situations where the ambient relative humidity is very low, the desired enclosure relative humidity may not be achieved without adding moisture. To add moisture to the enclosure only use slow, natural evaporation from a small porous water container. Do not use a humidifier.
The Breezaire Wine Cooler WKCE 2200 is a compact design with cold air discharge at the bottom, which makes them ideal for installation in cabinets. Because of this configuration, this cooling unit is not rated for a specified number of cubic feet. They are intended for cabinets and other constricted enclosures. These compact compressor wine cooler units are designed to cool 25° less than the ambient temperature of the venting side of the unit. In some cases, improper placement or installation may cause the unit's performance to be degraded.
Available in for 140 cu.ft. cellar size and WKCE 2200 for 265 cu.ft. cellar size.
Features:
-
Adjustable Temperature - Breezaire wine cooler unit includes an adjustable thermostat. The ideal temperature for storing and aging wine is between 50°F and 60°F.
-
Automatic Humidity Control - Humidity must be present in the wine cellar to prevent cork and label deterioration. The gentle cooling action of the system maintains the relative humidity in the 50% to 75% range. (Additional moisture may be required in extremely dry climates.)
-
Vibration Control - Breezaire cooling systems are engineered to control vibration by dampening mounts throughout the cooling system.
-
Ultra-Quiet Operation - Breezaire cooling units perform their task quietly and unobtrusively to preserve the atmosphere of isolation from the outside world that makes a visit to a wine cellar a unique experience.
-
Attractive Metal Cabinet - An attractive metal cabinet that blends in with the décor of your cellar area and can be flush mounted to any wall.
-
Ease of Installation - No plumbing, complicated wiring, or special procedures including the on-site installation of refrigerant are required.
-
Uncompromising Quality - Breezaire wine coolers are designed to deliver superior performance.
- Comprehensive Warranty Coverage - Owners enjoy the security of warranty coverage that reflects Breezaire ’s high standards.
Do you have a different size wine cabinet? Or just want to check your options? Check out other now! You can also browse our other .
Buy Breezaire WKCE Series Cooling System Wine Fridge WKCE 2200 today!
Manuals
Please click below to read and download the installation manual for this cooling system.
Please click below to view the Sentry lll Plus controller Manual
5 years warranty for all Breezaire Self-Contained parts used in this unit and Factory Labor is provided at no cost for 1 year from the original retail purchase.
Specifications
Specifications:

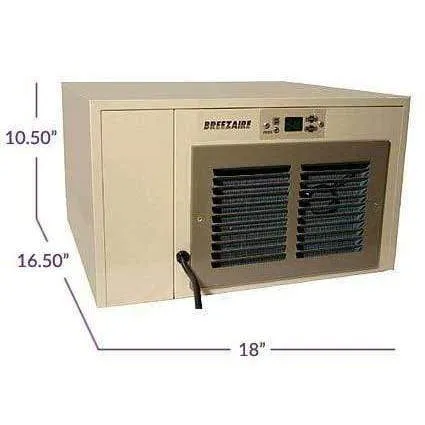

- Dimensions (H x W x D): 10.50" x 18" x 16.50"
- Capacity: Up to 265 cu. ft..
- Installation: Through-the-Wall
- High-Temperature Alarm: No
- Electronic Controls: Yes
- Digital Temperature Display: Yes
- Humidity Control: Automatic
- Defrost System: Automatic
- Exhaust Direction: Rear
- Electrical: 4 AMP
- Electrical Requirements: 115 V, 60 Hz - 4 A
- BTU Cooling: 2200
- Weight: 55 lbs
- Warranty: Labor: 1 Year | Parts: 5 Years
Need assistance? Talk to an Expert at 1-888-407-7770 or email [email protected] to get the best-suited wine cooling system for your needs.
Sentry III Control System
Sentry III control system offers the following features:

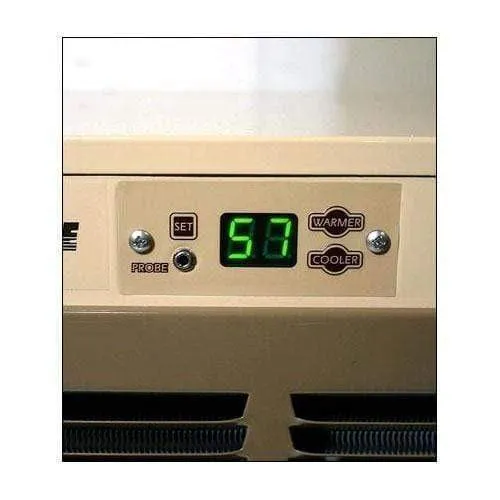

Each Breezaire Wine Cellar Unit comes equipped with Breezaire's Sentry III digital electric control system, which includes a control panel with an easy to read, green LED display.
Walk Through of Breezaire Sentry lll Control System
Warning: UNPLUG the unit before changing Sentry lll
Wiring Diagram:
Product Video
GET TO KNOW BREEZAIRE WKCE SERIES WINE CELLAR COOLING SYSTEM
Bottle Probe (OPTIONAL)
Bottle Probe (OPTIONAL)
The Breezaire Bottle Probe can be used on all models. The bottle probe is used when you want to control the temperature of the wine cellar according to the liquid in the bottles. When the bottle probe is plugged into the unit it will take place of the internal air sensor.
Allow the enclosure to stabilize at the desired temperature for several days (72hours). Using a normal size wine bottle clean the bottle and then fill it with water insert the bottle probe into the bottle, and place it in the enclosure. Do not connect the bottle probe to the unit until the bottle has sufficient time to cool to the enclosure temperature (72 hours). Connect the bottle probe to the outlet located on the face of the unit. The on and off operation of the unit is now controlled by the temperature of the liquid in the bottle. The temperature displayed is that of the liquid in the bottle. Unplugging the bottle probe will return the unit to the internal air sensor and will be reading the wine cellar temperature. The bottle probe cord is 5’ long.
