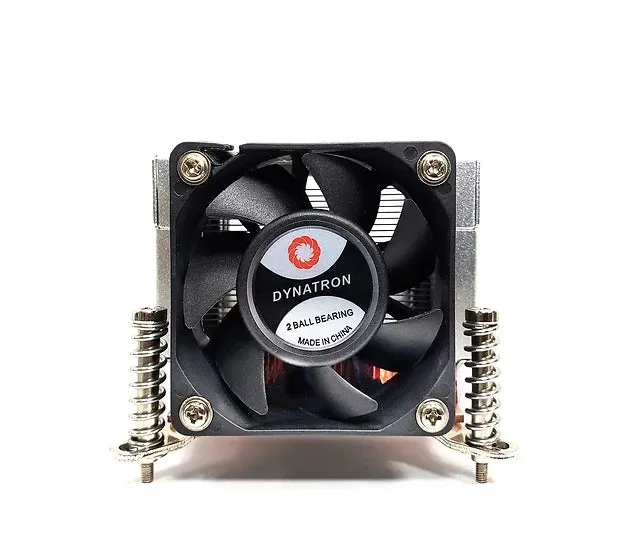

Dynatron Q5 2U Active Air Cooler

840556074724

The Dynatron Q5 2U Active Air Cooler is reinforced with an aluminum heatsink with an embedded heat pipe ensuring solid cooling performance. The aluminum fins maximizes the surface area of the heatsink.

Sustaining the coolers lifespan with its 2 Ball Bearings and comes at a standard 12V Voltage.
It comes with a side-blow fan with PWM Function allowing fan speed control with on-off cycles.

This will keep your CPUs, workstations, and servers below the limit and keep them running at their best performance.

PRODUCT SPECIFICATIONS:

• CPU Support: Intel
• CPU Socket: Socket LGA 1700
• Solution: 2U Server and Up
• Dimensions: 90.7 x 85.0 x 65.1 mm
• Lead Wire Pin Out: Pin1- (-)
                                   Pin2- ( )
                                   Pin3- (Tachometer/Signal output)
                                   Pin4- (PWM)
• Mounting Method: Cooler Mounted in Captive design
• Back Strip Set: Included
• Thermal Grease: SHIN-ETSU 7762 Pre-printed
• Fan Dimension: 60 x 60 x 25mm
• Speed: At Duty Cycle 0~20%: 1600± 200 RPM
               At Duty Cycle 50%: 4000± 10% RPM
               At Duty Cycle 100%: 8000 RPM
• Bearing Type: 2 Ball Bearing
• Rated Voltage: 12V DC
• Power: At Duty Cycle 0~20%: 1.20 W
              At Duty Cycle 50%: 2.28 W
              At Duty Cycle 100%: 7.20 W
• Air Flow: At Duty Cycle 20%: 8.85 CFM
                  At Duty Cycle 50%: 21.88 CFM
                  At Duty Cycle 100%: 43.75 CFM
• Noise Level: At Duty Cycle 0~20%: 18 dBA
                        At Duty Cycle 50%: 37.89 dBA
                        At Duty Cycle 100%: 52.94 dBA
• Air Pressure: At Duty Cycle 0~20%: 0.76 mm-H2O
                        At Duty Cycle 50%: 4.76 mm-H2O
                        At Duty Cycle 100%: 19.04 mm-H2O
• Material: Copper Base & Aluminum Fins with Heat Pipe embedded
• Weight: 515.2g
