Product Details
＋

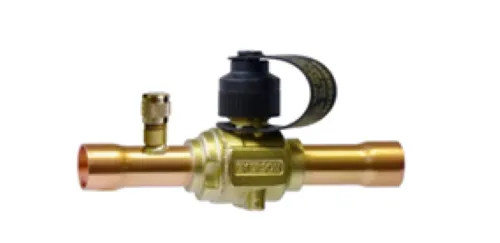

Emerson BVS 038 3/8" ODF Refrigeration Ball Valve with Access Port
The BVE/BVS Series welded refrigeration ball valves isolate suction, discharge, and liquid line pipework during maintenance shutdown periods.
Features and Benefits
- Forged brass body
- Compact, lightweight, hermetic welded design
- Compatible with HCFC and HFC refrigerants/lubricants including R-410A and R-744
- Full flow design*
- Bi-directional flow characteristics
- Valve stem cap retained by strap attached to main body
- Integrated access port available on all sizes
- Low operating friction design
Specifications
| Inlet Connection Size: | 3/8” ODF Solder |
| Outlet Connection Size: | 3/8” ODF Solder |
| Access Valve: | |
| Port Size: | Full Port |
| Body Design: | Forged Brass |
| Construction: | Extended Tubes, 100% Copper Connections |
| Maximum Working Pressure: | 650 psig |
| Fluid Temperature Range: | -40°F to 250°F (302°F short term) |
| Approvals: | UL/CUL File Number SA5312 |
