Product Details
＋

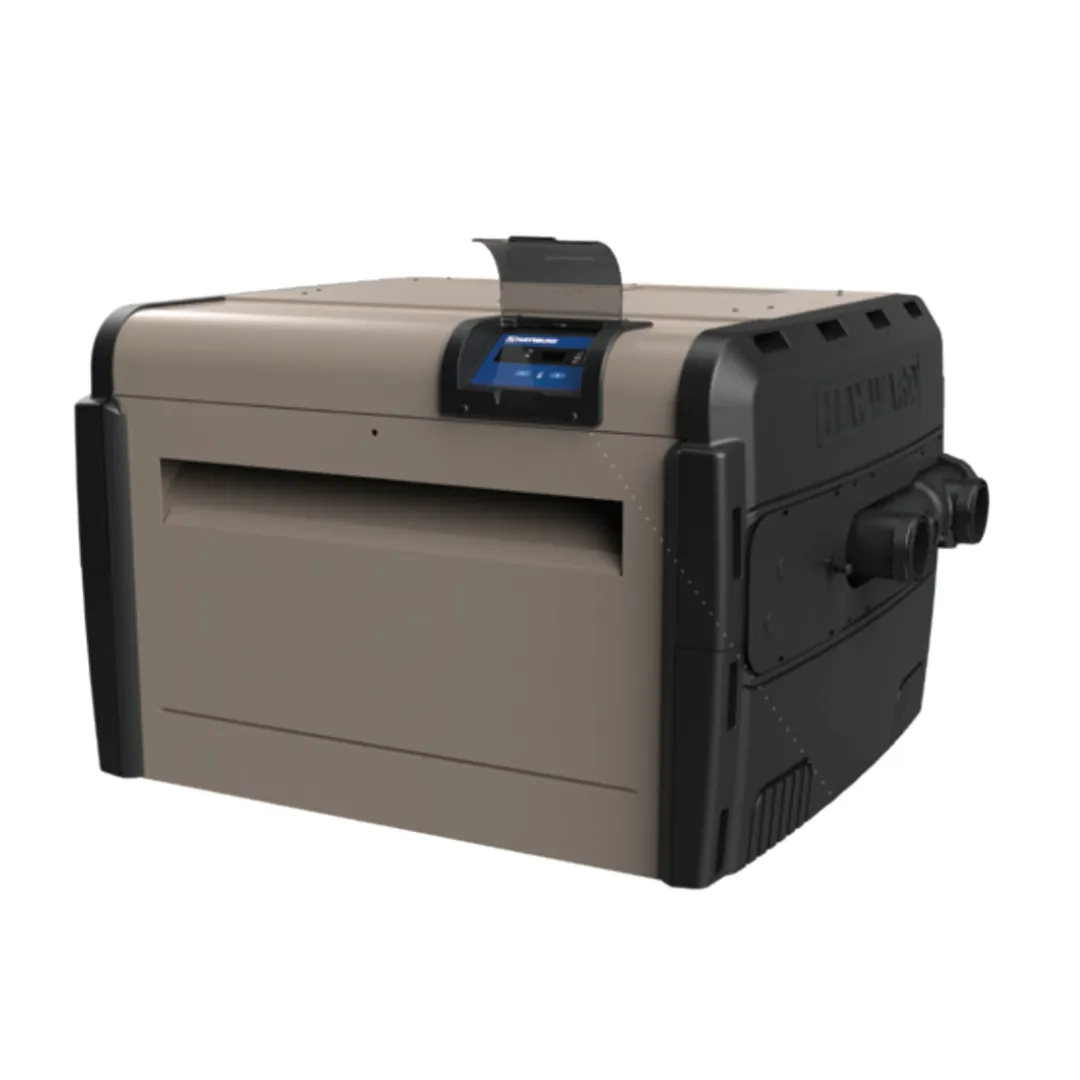

The Universal H-Series is an energy-efficient, high-performance, installation-adaptable commitment to the pool service professional.
- Application: Up to 25,000 Gallons*
- Standard cupro nickel heat exchanger
- Excellent salt water and chemical corrosion resistance
- Exclusive "Totally Managed" cupro nickel heat exchanger water flow
- Same water velocity through all tubes for faster heating
- Patented header by-pass design
- Up to 18 percent savings by reducing pump run-time
- 2in x 2 1/2in CPVC union plumbing connections
- Common union for installation or service adapts to larger plumbing recommended for greater efficiencies
- Low NOx emissions - meets clean air quality standards
Support Documents:
Specifications:
- Active Defrost No
- Application New Construction, Renovation, Aftermarket
- Boost Mode No
- Brand Hayward
- Circuit Amps 5.5000
- Cooling Capability No
- Fuel Type Propane
- GTIN 610377387224
- Heating Capacity (BTU/hr) 199900
- Hertz 60 Hz
- Kilowatts 59 kW
- Labor Warranty None
- Low Ambient Operation No
- Maximum Fuse Breaker Size (Amps) 15.0000
- Minimum Circuit Amps 5.5 A
- Parts Warranty 3-year
- Phase Heaters 1.0000
- Pool Type In Ground
- Product Dimensions 24 " x 22 " x 29.5 "
- Product Height 24 in
- Product Length 29.5 in
- Product Weight 140 lb
- Product Width 22 in
- Rear Clearance - Heaters 6 in
- Refrigerant No
- Series Heaters Universal HSeries
- Shipping Dimensions 30.6 " x 32.8 " x 33.3 "
- Shipping Height 30.6 in
- Shipping Length 33.3 in
- Shipping Weight 161 lb
- Shipping Width 32.8 in
- Side Clearance - Heaters 12 in
- Silent Mode No
- Thermal Efficiency 83 %
- Water Flow Rate Max 125
- Water Flow Rate Min 20
*Please Note: The BTU rating is the minimum heating requirement for the recommended gallons shown. This is under perfect conditions with no temperature loss. Always size up if you plan to use the heater in cool weather or without a cover. Need help? Contact us anytime - we’re here to help!
