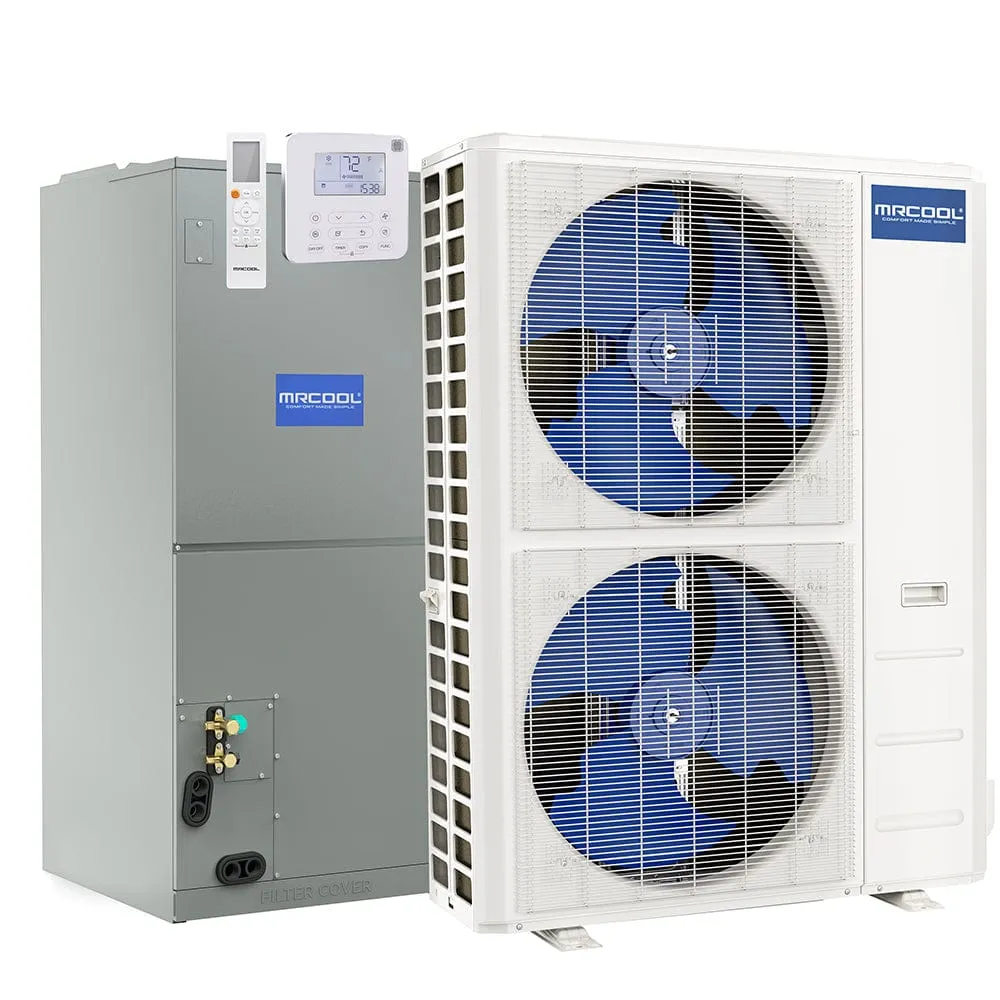

MRCOOL Central Ducted 48K BTU 4 Ton Complete Unitary System Air Handler & Condenser Heat Pump CENTRAL-48-HP-230-00
Why choose the MRCOOL Central Ducted 48K BTU 4 Ton Complete Unitary System & Air Handler & Condenser Heat Pump, CENTRAL-48-HP-230-00?
The MRCOOL Central Ducted 48K BTU 4 Ton Complete Unitary System offers a high-performance, all-in-one solution for efficient heating and cooling. Its comprehensive design integrates the air handler and condenser, delivering consistent comfort and energy savings for large residential or commercial spaces. Buy from Wine Coolers Empire for unmatched quality and service.
Features:

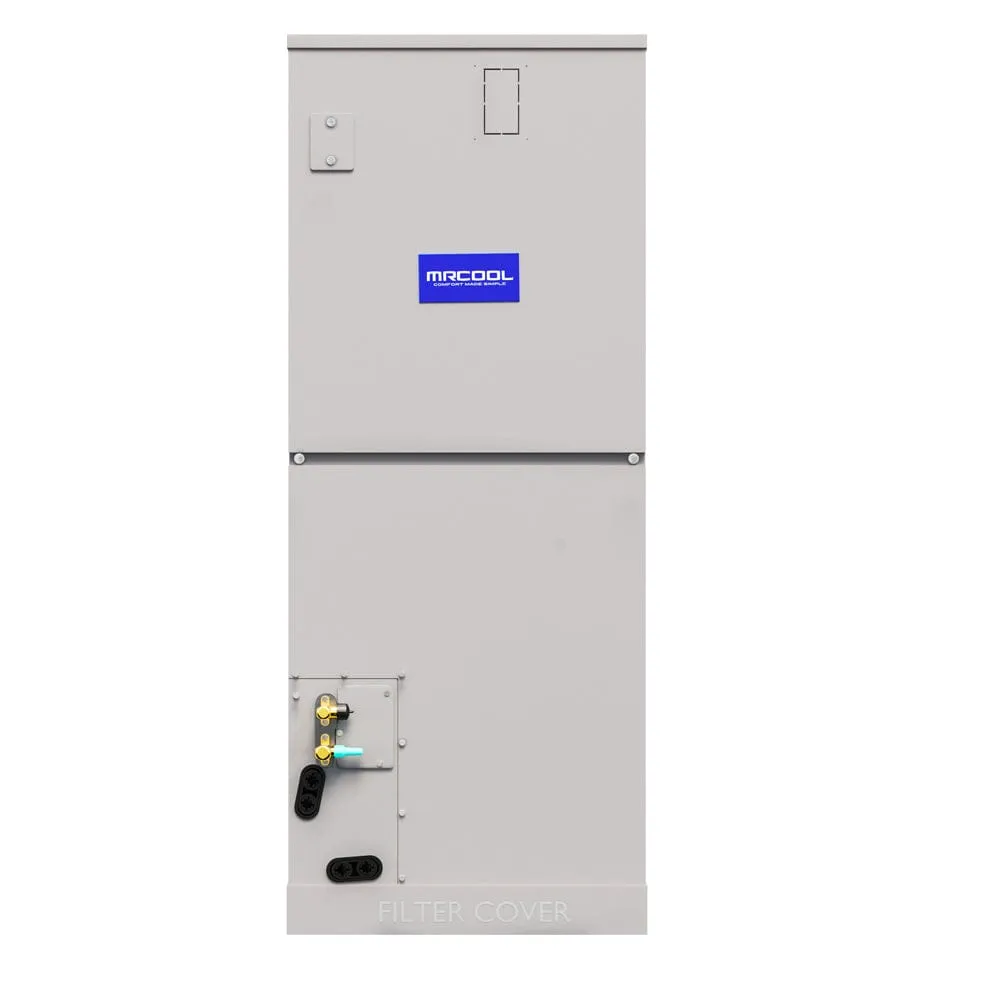

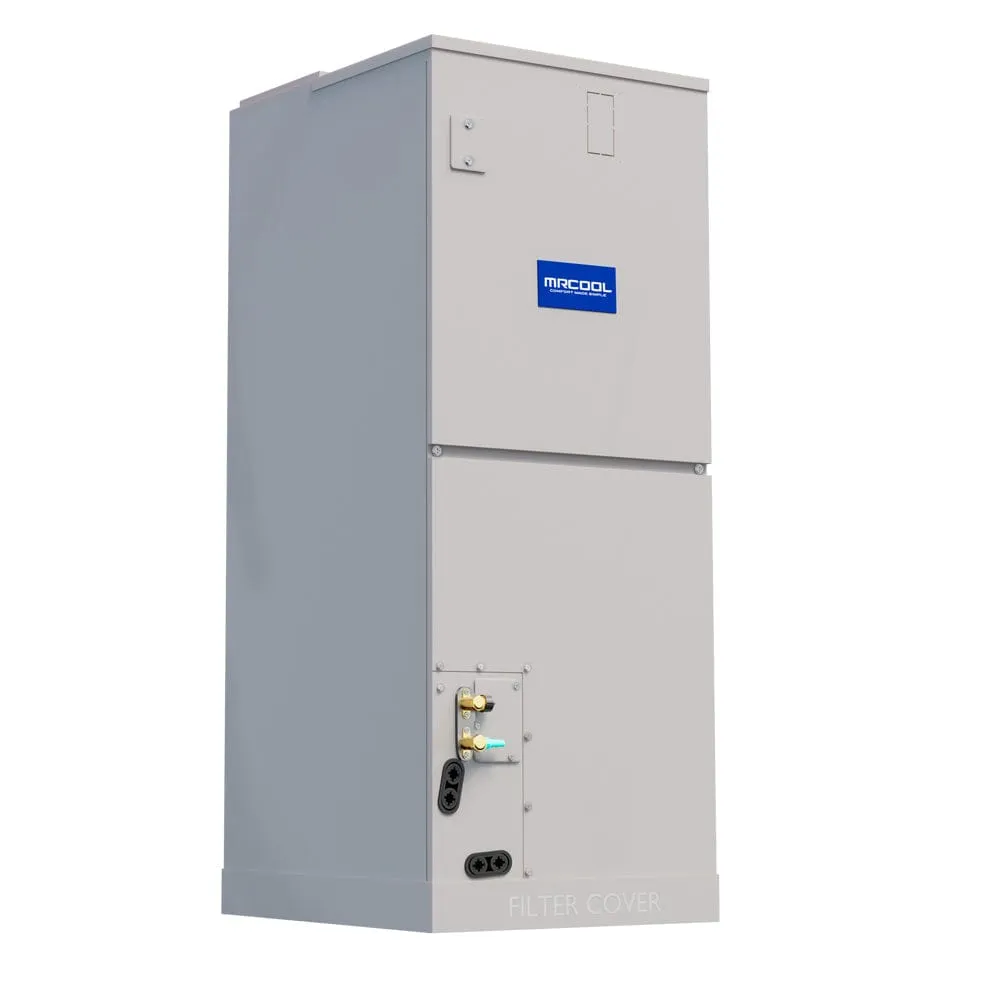

- High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.
-
Multi-Positional. The unit is compatible with upflow, counterflow and horizontal configurations.

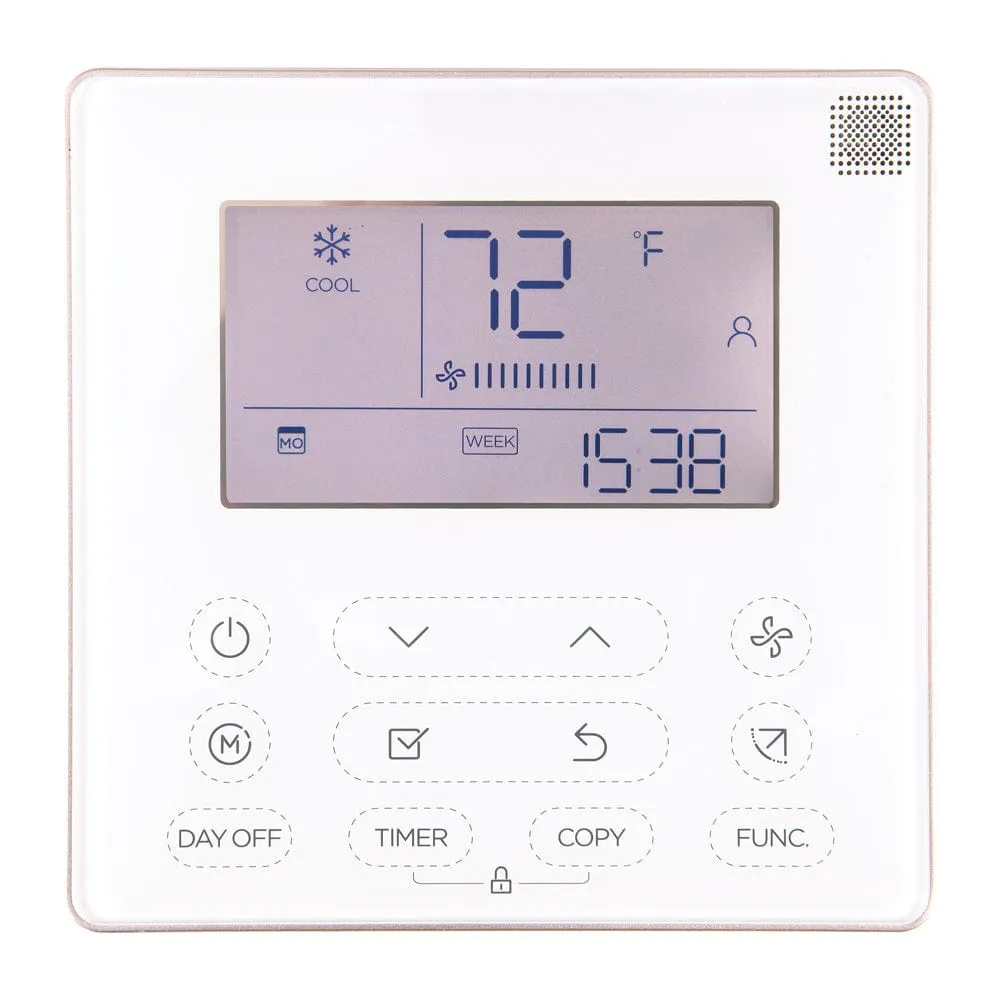

- Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!

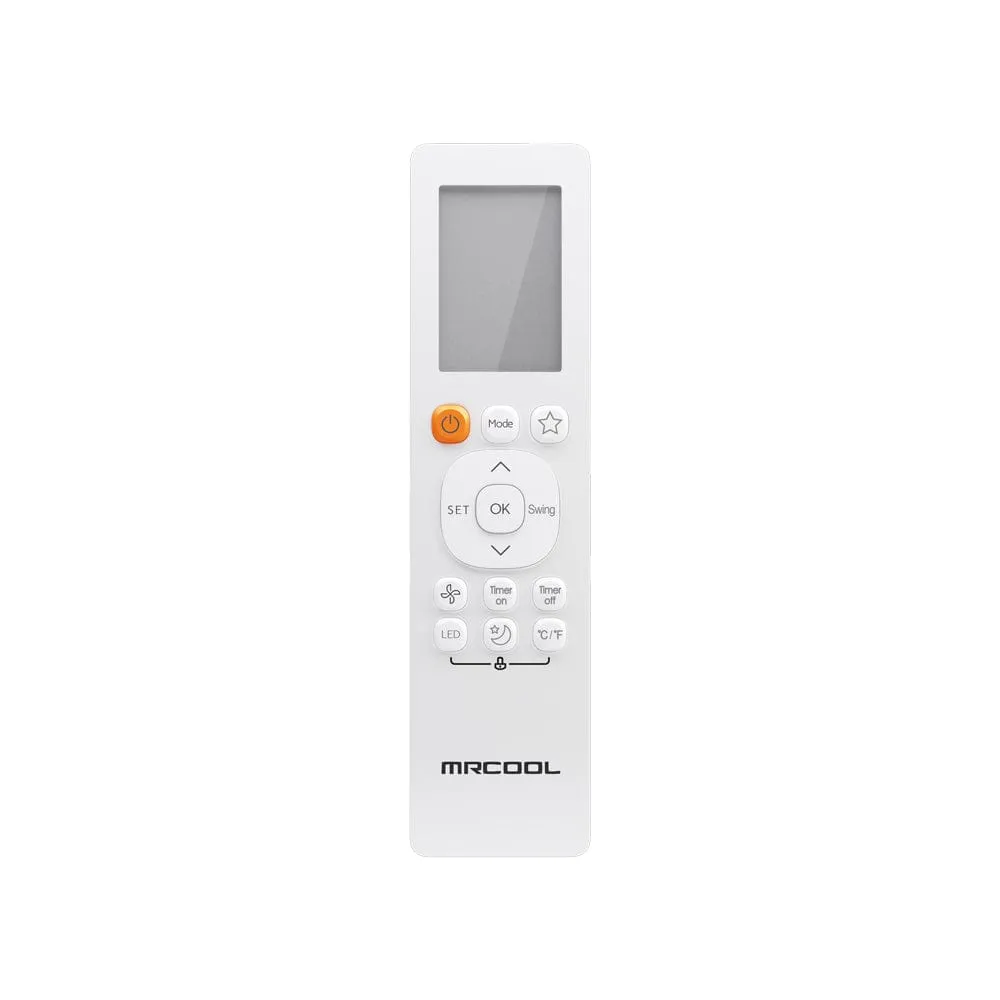

- Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.
- 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.
- Optional heating kit available
- R-410A environmentally friendly refrigerant
Manuals
Manuals:
Specifications
Specifications:

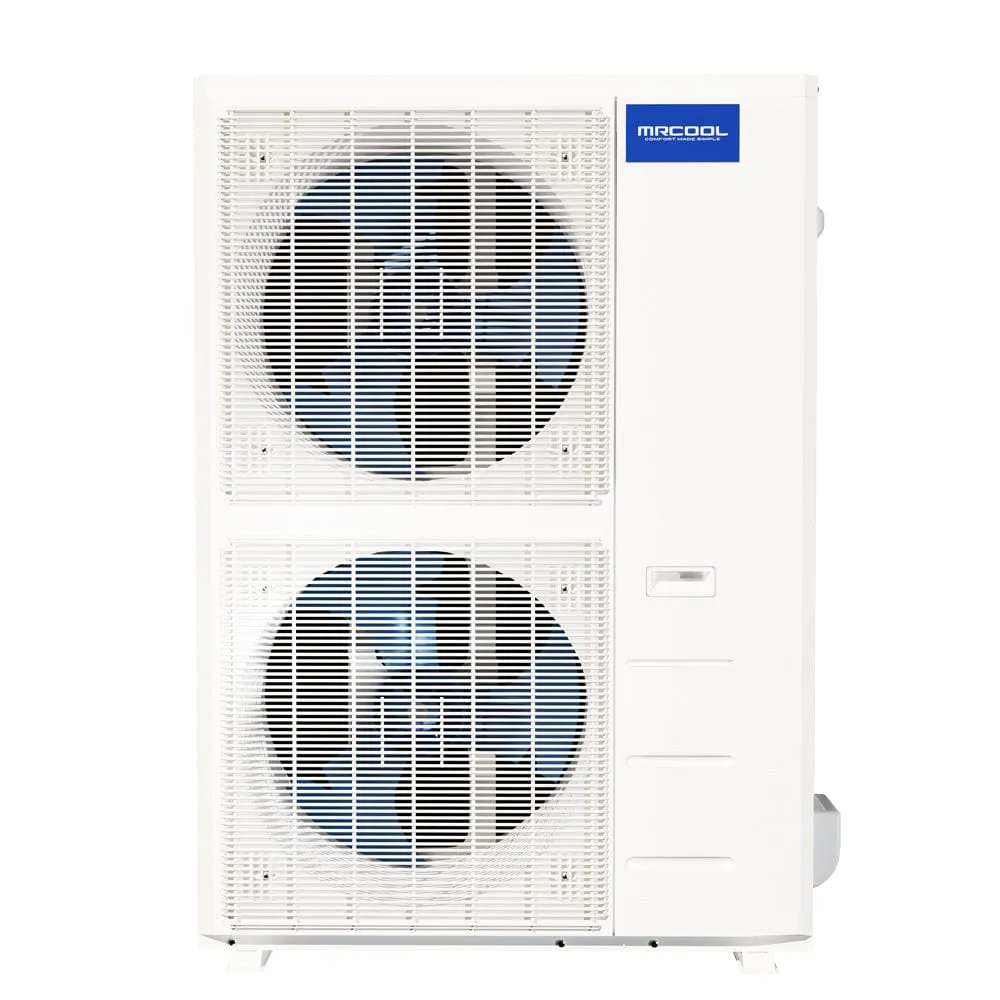

| Condenser Dimensions | 37.48"W x 16.34"D x 52.48"H |
| Condenser Weight | 217.59 lbs |

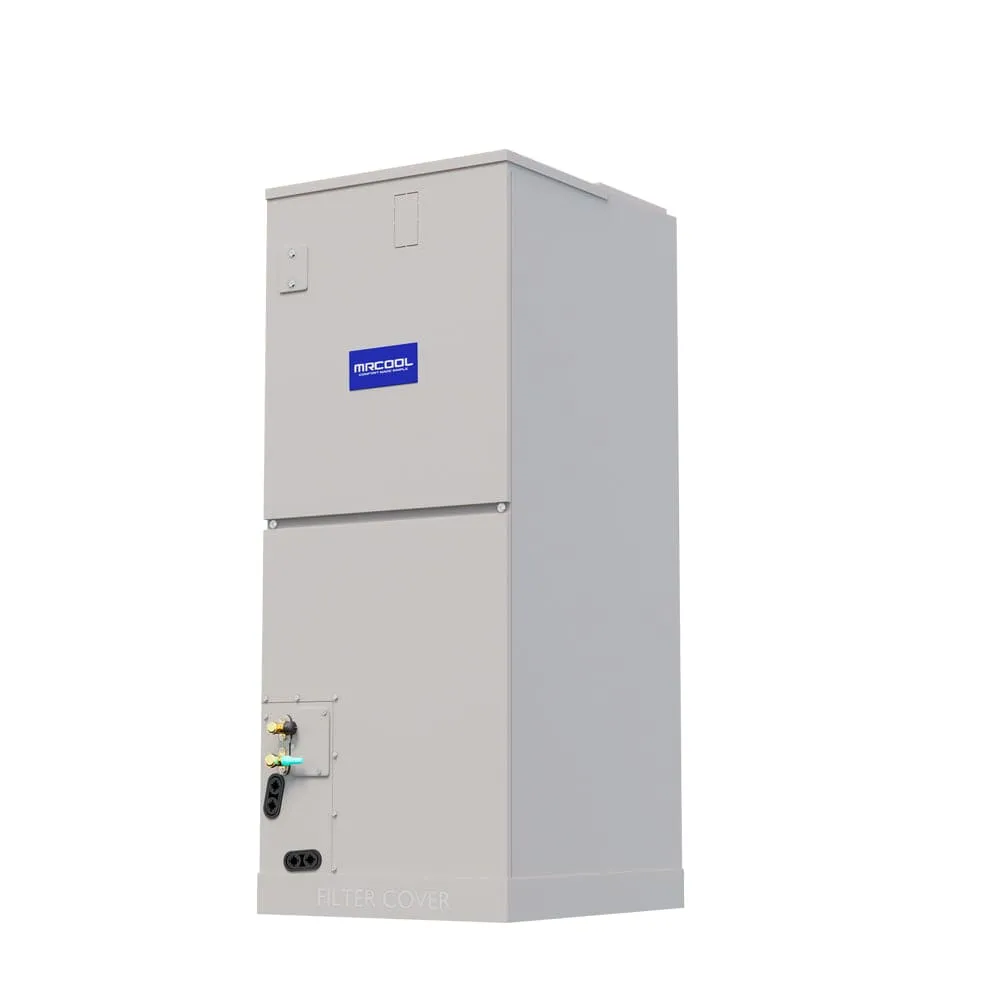

| Air Handler Dimensions | 21.02"W x 21.02"D x 49.02"H |
| Air Handler Weight | 132.50 lbs |
| SEER | 17.3 |
| EER | 9.3 |
| HSPF | hspf4/hspf5: 10/8.2 |
| CFM | 1282.35/1094.12/905.88 |
| Cooling Capacity | 47,000 BTU |
| Heating Capacity | 55,000 BTU |
| Voltage | Requires a minimum of 208-230V/60HZ/34A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 50 |
| Min Circuit Ampacity | 34 |
| Color | Gray |
| Rate Load | 2.4 |
| Zone Capacity | 1 |
| Coverage Area | 2,000 square feet |
| Refrigerant Type | R410A |
| Refrigerant Volume | 165.79 oz |
| Decibel Rating | 53/50/46 |
| Decibel Rating Low | 46 |
| Decibel Rating High | 53 |
| Air Flow Direction | Multi-position |
| Min Ambient Cool | 5~122F |
| Min Ambient Heat | 5~75.2F |
| Lineset Included | No |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 3/4in |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor RPM | 850/750/650 |
| Filter Type | Replaceable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 8kw,10kw,15kw, 20kw |
| Adjustable Thermostat | Yes |
| Modes | Fan Sleep Auto Cool |
| Includes | Remote Battery |
| App Compatibility | No |
| Certificates | AHRI |
| Warranty | 10 years parts and labor |
