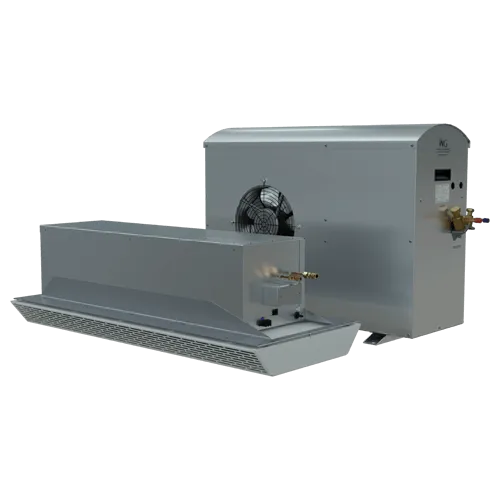

Wine Guardian CS050 Ceiling Mount Cooling System Review

Searching for wine cellar cooling units that are both efficient and operate quietly? then the Wine Guardian CS050 Ceiling Mount Wine Cooling System is the perfect solution for you!

NOTE: The CS050 is a 60Hz system, which is commonly used in most of North America, including the USA and Canada. It has a unit capacity of up to 4,300 BTU/h.

The Wine Guardian CS050 Ceiling Mount Wine Cellar Cooling Unit is perfect for to mid-size wine rooms with limited space where you can't install a traditional unit. It can cool cellars up to 2,200 cubic feet and has a capacity of up to 4,300 BTU/H. This wine cooling system is designed to be mounted seamlessly on the ceiling and can be easily installed between standard joist construction, so they won't look bulky. Ideal for applications such as wine displays, glass wine walls, or .

Not only is this cooling system quiet in operation, but it also boasts a lightweight, corrosion-proof construction, ensuring that it will last for many years to come. The Wine Guardian CS050 comes paired with a specifically-designed Wine Guardian condensing unit, providing you with the perfect combination of power and efficiency. This system also features Low Ambient Protection, ensuring that your wine stays perfectly chilled even in extreme temperatures.

Other sizes available: for 100-1200 cu.ft.

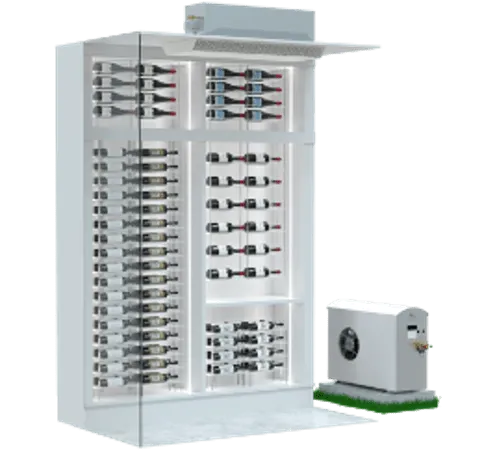

Available in Wine Wall version:

Looking for more options to protect your wine collection?

Wine Guardian offers the following options to provide extra protection:

Condensing Options:

Standard: Base model with Low Ambient Protection – protects the system from cold temperatures below 5°C (40°F).
Extreme Climate Protection: This option offers protection to the condenser section of the unit only during extreme climate conditions. It is necessary to use it to ensure continuous operation in climates where temperatures drop below 20°F. It allows the system to function even in temperatures as low as -20°F.

To preserve the quality of your wine collection, it's important to maintain the proper level with Wine Guardian Humidifiers. Temperature control alone won't suffice, so we advise using the Wine Guardian Freestanding Humidifier.

Advantages of Wine Guardian Ceiling Mounted Systems

Wine Guardian's Ceiling Mounted Cooling Systems are split ductless wine cellar cooling units that are designed specifically for ceiling mounting. They offer excellent wine preservation when there's no option for ductwork and provide high-quality cooling and airflow to maintain the perfect storage conditions for your wine collection. Wine Guardian Ceiling Mount split ductless wine cooling systems are one of the . These Wine Guardian split systems are also very flexible for installers who have limited space to work with.

Want to see more of these? Browse through our or check out all our .

Want to have the best wine cellar design? Choose modern wine racks and unique wine rack designs from !

WHY BUY FROM US: Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling units, residential wine cellar coolers, and wine room humidifiers. More Wine Guardian reviews can be found on our page.

for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our .

Buy Wine Guardian CS050 Ceiling Mount Wine Cooler Units today and enjoy your amazing wines at their best temperature!

Features

Features:

FLEXIBLE INSTALLATION
The Ductless Split system consists of two separate units and does not require any ductwork. This makes it a suitable solution for wine room projects with the following limitations:
- No room for ductwork
- Limited space in mechanical rooms
- Difficult to exhaust condenser air

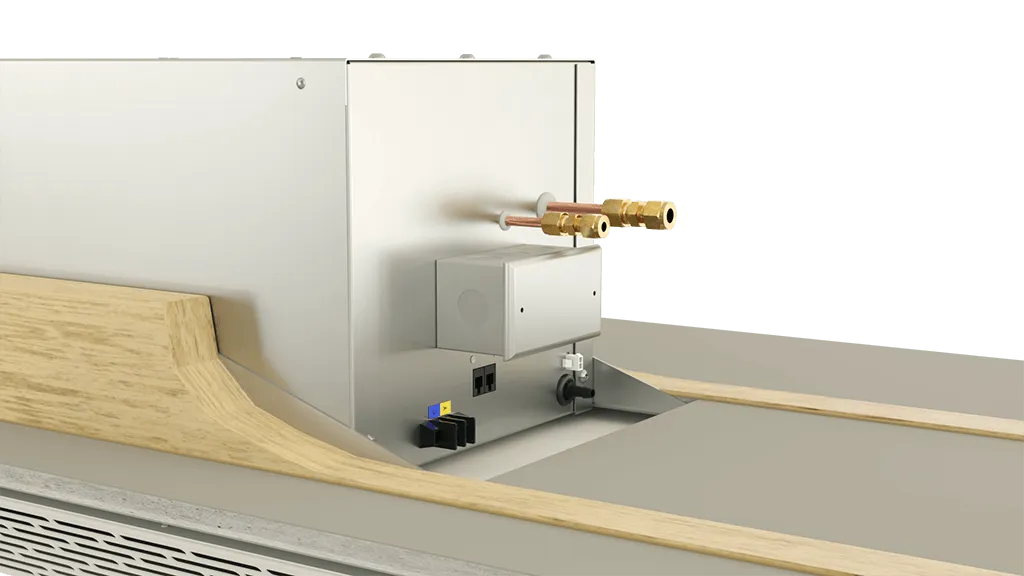

EASY ACCESS AND INSTALLATION
Both the Wine Wall Cooling System and the Ceiling Mounted System are equipped with a unique hinge design for ceiling mounting, which functions as an extra hand during installation, making it easy for one person to install.
SYSTEM CONTROL
The remote interface controller for the ductless split system lets you adjust the temperature and check the humidity levels. The controller uses Wine Guardian's Wireless2Base™ Technology, which means you can place it anywhere that's convenient for you – in the cellar, kitchen, or living room. If you need to measure the temperature and humidity levels outside the cellar, you can connect an additional controller and remote sensors to get accurate readings. This makes it easy to keep an eye on your wine room's conditions from anywhere in your home.

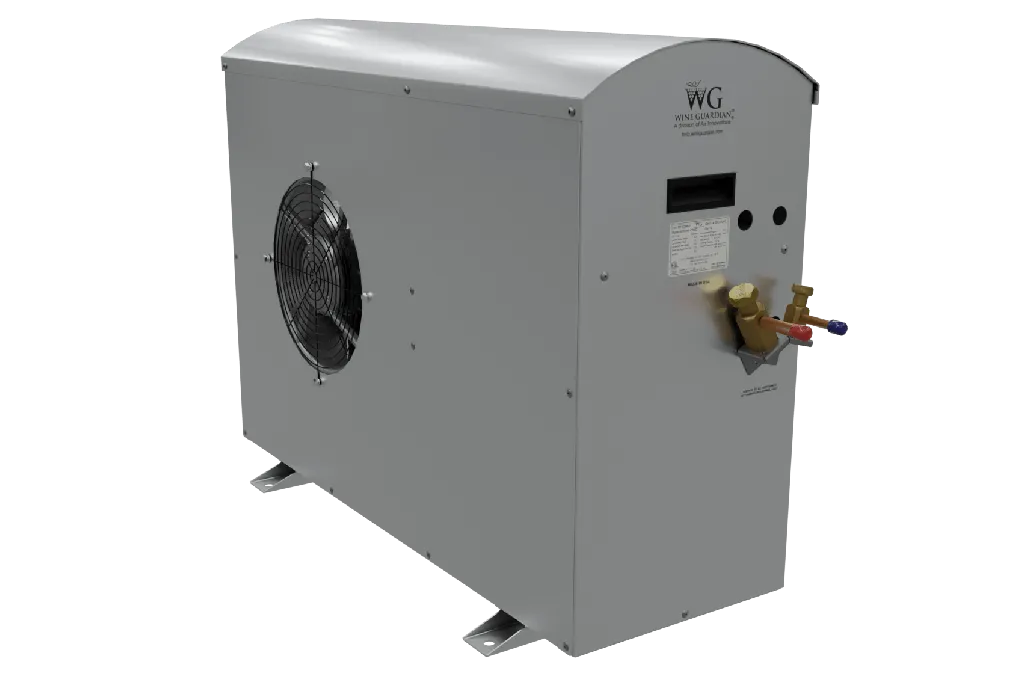

THE CONDENSER: MADE FOR WINE GUARDIAN
The Through-the-Wall and Ceiling Mounted versions of the system have an outdoor condensing unit that is made by Wine Guardian to work specifically with the evaporator. The evaporator and condenser units of the Ductless Split system are connected by copper tubing, which is the same type of tubing used in residential ducted mini split systems. This makes the installation feel familiar.
COMPLETE WINE PROTECTION
The system's remote controller uses air sensing technology to monitor both the wine cellar temperature and wine storage humidity. It ensures that the conditions remain consistent for optimal wine preservation. If any changes are detected, the controller adjusts the temperature to the best settings before any impact on your wine collection.
HASSLE-FREE SERVICE
The grille assembly of the Ductless Split system can be easily removed without requiring any tools. This provides easy access to the system's controls and internals, making it simple for servicepersons to make repairs and move on to the next job. Unlike its competitors, the Ductless Split system and all other Wine Guardian systems can be fully serviced in the field without needing to be sent back to the factory.
PAIRS WELL WITH WINE GUARDIAN HUMIDIFIERS
Maintaining proper wine storage humidity is crucial to ensure that your wine collection remains in pristine condition without any loss of liquid or spoilage. To ensure the flavor and quality of your wine are not compromised due to improper cellar conditions, an optional Wine Guardian Freestanding Humidifier can be installed in your cellar.

Specifications

Specifications:

Model: CS050
Line Frequency: 60 HZ
Capacity: 1000- 4050 BTU
Volume: 250 – 2200 ft³
Length: 43.25" (evaporator) | 34" (condenser)
Width: 18.125" (evaporator) | 12.3" (condenser)
Height: 13.25" (evaporator) | 26" (condenser)
Weight: 48 lbs | 76 lbs (condenser)
Electrical: 115/1/60 | 208-230/1/60 (condenser)

Manuals

Manuals:

Manufacturer's Warranty

Wine Guardian warrants, to the original buyer, a period of two (2) years parts and 1 year labor from the date of invoicing assuming NORMAL USE AND SERVICE

Need assistance? Talk to an Expert at 1-888-407-7770 or email: [email protected] to get the best-suited wine cooling system for your needs.

Options

Available Options

Enhance your wine cooling systems by adding Wine Guardian parts and accessories. The system's performance and durability are upgraded and protected by these add-ons.

Condensing Options

Standard: Base model with Low Ambient Protection – protects the system and your wine collection from cold temperatures or low ambient temperatures below 40°F (5°C) to a minimum of 0°F.
Extreme Climate Protection
Extreme Climate Protection For Ducted Split Systems: Protects the condenser section only in extreme climates that fall below 20°F to ensure continuous operation. This protection enables the system to operate in temperatures as low as -20°F.

Accessories

Remote Interface
The Wine Guardian system can be controlled by the Wine Guardian Remote Interface Controller, which includes thermostat (humidistat) and monitor controls. This device can be placed either inside or outside the wine room with the use of a remote sensor.
Remote Sensor
The Wine Guardian Remote Sensor is used for standard Wine Guardian cooling units. It can detect the temperature and humidity in the wine cellar and is especially useful for large rooms, multiple rooms controlled by one Wine Guardian cooling system, or when averaging temperature and humidity across different areas of the cellar. Each sensor comes with 50 feet of cable.
Cable
The Communication Cable links the Remote Interface Controller with the Wine Guardian wine cooler units. This can also be used as replacement for a damaged cable. With this cable, the remote interface controller can be placed up to a 50 feet away from the cooling unit.

Humidifier Options

Freestanding Humidifier Wall Mount
This Wine Guardian Freestanding Humidifier includes a power-control cable to connect to the Wine Guardian cooling system. Includes wall-mount bracket for maximum placement flexibility. The humidifier can be operated using the existing Wine Guardian controller.
Freestanding Humidifier Wall Mount Bracket
This Wine Guardian Freestanding Humidifier includes a wall mount bracket, power cord, and a humidistat for use in cellars with no Wine Guardian cooling system. The humidifier can be operated using the existing Wine Guardian controller.

Warranty Options

Wine Guardian 3 Year Extended Compressor Warranty
By choosing this option, the warranty period for the compressor, evaporator coil, and condenser coil (parts only) will be extended by three (3) years.
